ASME B16.5 ASTM B381 pure titanium gr1 gr2 Titanium weld neck flange
Titanium Flange Type
a. Slip On Flange
b. Welding Neck Flange
c. Threaded Flange(Screwed Flange)
d. Plain Flange
e. Blind Flange
f. Lap Joint Flange
g. Wocket Welding Flange
h. welded flange
i. titanium large-diameter flange
1. Product Information of Titanium Weld Neck Flange
| Product | titanium weld neck flange |
| Application | chemical industry |
| Standard | ANSI B16.5, ASME B16.5, EN1092-1, JIS B2220, DIN2627-2628 |
| Material | Gr1, Gr2, Gr5, Gr7, Gr12 |
| Size | 1/2"~ 30"NB, NPS 1/2 - NPS 24 (DN 10 - 2000) |
| Pressure | PN0.25~32Mpa/ (DIN) PN6,PN10,PN16,PN25 though PN250/ 150LB, 250LB ,300LB, 400 LB,500LB, 600 LB,900LB, 1500LB,2500LB. |
| Sealing Surface | RF, FF, TG, RJ etc. |
| Technique | Froged and CNC Machined |
Mechanical Properties of ASTM B381 Titanium Plate Flanges
| Element | Density | Melting Point | Tensile Strength | Yield Strength | Elongation |
| Titanium Gr2 | 4.5g/cm3 | 1665℃(3030°F) | Psi- 49900, MPa- 344 | Psi-39900, MPa-275 | 20% |
| Titanium Gr5 | 4.43g/cm3 | 1632℃(2970°F) | Psi- 138000, MPa- 950 | Psi-128000, MPa-880 | 14%
|
Titanium Flange Production Process
Raw Material ⇒ Inspection Material ⇒ Cutting ⇒ Heating ⇒ Forging ⇒ Heat Treatment ⇒ Machining ⇒ Drilling ⇒ Marking ⇒ Washing/Cleaning ⇒ Final Inspection ⇒ Packing ⇒ Delivery
4. Detailed Images of Titanium Weld Neck Flange

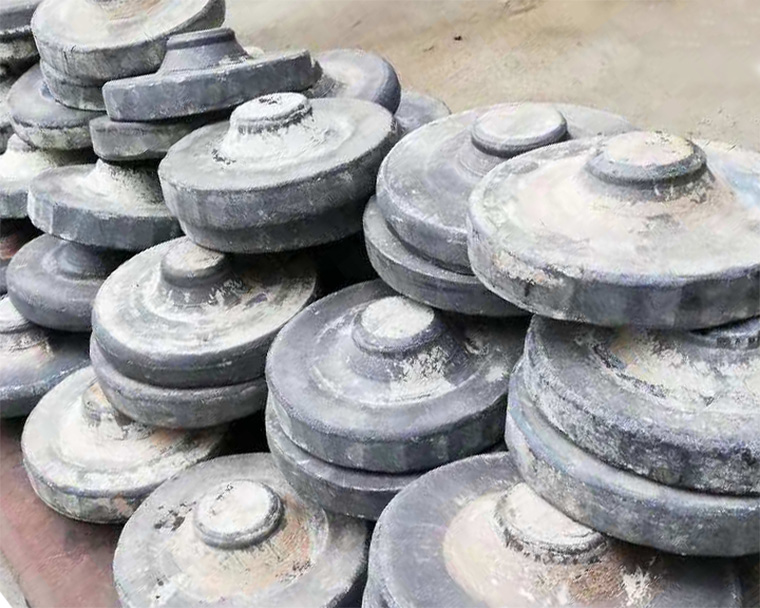

(1) Raw Material

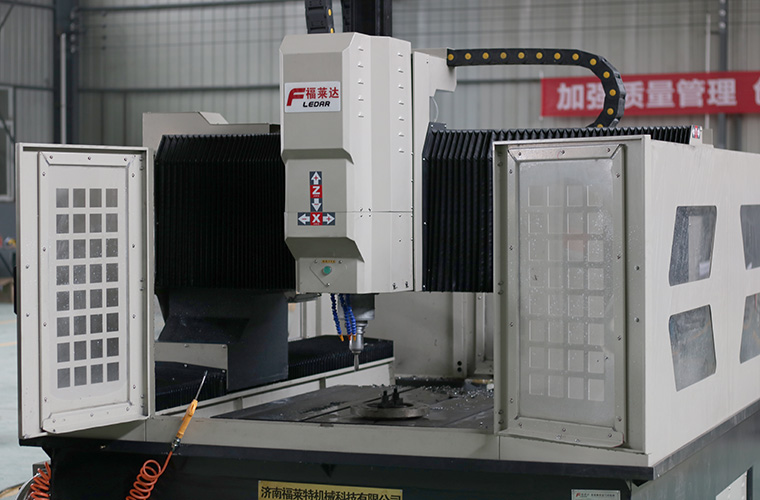

(2) Equipments
(3) Connection
4. Package of Titanium Weld Neck Flange
Titanium weld neck flanges are used in various industries including petrochemical, oil and gas, power generation, bulk liquid transportation, chemicals, pharmaceuticals, pulp and paper manufacturing, textiles and others. Titanium weld neck flanges are packed to ensure that there is no damage during shipment. In case of export, standard export packaging is done in plywood box. Markings can be made as you require.
5. All Tests of Titanium Weld Neck Flange
Visual testing (VT)
Ultrasonic Testing (UT)
Radiographic Testing (RT)
Magnetic particle testing (MT)
Penetrant Testing/Dye penetrate (PT)
Eddy Current testing (ET)
Acoustic Emission(AE)
Product Tags:
|
|

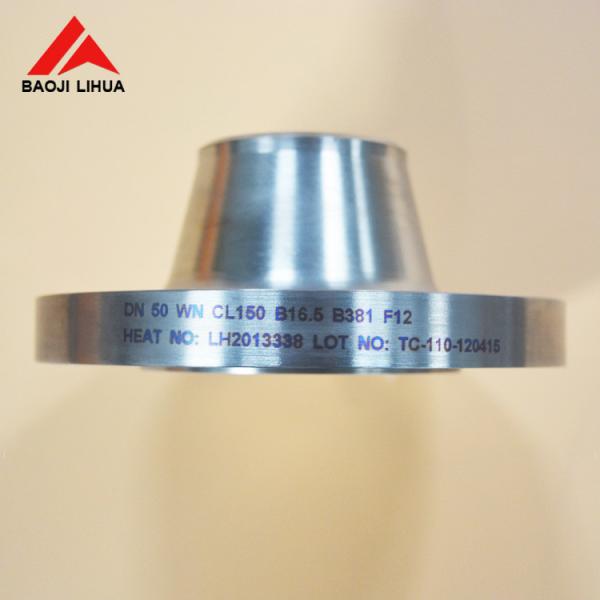

Pure Titanium Weld Neck Flange Gr1 Gr2 ASME B16.5 Corrosion Resistant Images
|
