ASME Welded Titanium Condenser Tubes Gr1 Titanium Heat Exchanger Tubes

Name: ASME Welded Titanium Condenser Tubes Gr1 Titanium Heat Exchanger Tubes
Brand: LHTI
Price: 1 USD

Quality ASME Welded Titanium Condenser Tubes Gr1 Titanium Heat Exchanger Tubes wholesale

Brand Name : LHTI

Model Number : LH-01

Certification : ISO9001

Place of Origin : BaoJi Shaanxi China

MOQ : 10kgs of each size

Payment Terms : L/C, D/P, T/T, Western Union,Paypal.etc

Supply Ability : 5 tons per month

Delivery Time : 15-25 working days

Packaging Details : Each tube with environmental protection bags,outside is standard plywood case

Key words 1 : Titanium seamless tube

Key words 2 : Welded titanium tube

Material : Pure titanium , Titanium alloy

Grade : Gr1, Gr2, Gr3,Gr4, Gr7, Gr9, Gr12,etc

Length : Max 12 meter

Surface : Pickling surface

Payment term : T/T,L/C etc

Application : Chemical industry

Contact Now

Titanium Alloy Gas Tubes Titanium Condenser Tubes Titanium Boiler Tubes Titanium Heat Exchanger Tubes

Titanium seamless & welded tubing has double the strength of aluminium & ASME SB338 Titanium Tube is about 60% denser than aluminium. Titanium NCF Tubes is a silvered colored metal with low density and high strength. Titanium Micro Tubes are strong and lightweight making them ideal for automotive, aerospace, military and industrial applications. ASTM B338 Titanium Alloy boiler tubes is considered to be one of the strongest metals. These applications range from medical implants to airplanes and ships. Pure Titanium condenser tube is strong and corrosive resistant.

TITANIUM TUBING
Sizes: Tube & Tubing Full Range of sizes in all grades	GRADE	SPECIFICATIONS
	CP-GRADES 2,3,4	AMS-4941, 4942, BMS-7-21, DMS-1872, 1874, 1898
	3AL-2.5V	AMS-4943, 4944, 4945, DMS-2241, B50TF35, PWA-1260
Extruded Titanium Tubing Specifications: AMS 4935, DMS 1650, MIL-T 9047, MIL-T 81556, MMS 1202, AIMS 03-18-011, AMS 4975 (chemistry only)

Titanium Seamless Tubes Specifications:

Dimension	Outer Diameter	Thickness	Length
Size Range:	0.5mm – 330mm	0.4mm – 10mm	Max 15m
Manufacturing Standards	ASTM B338, ASTM B861, DIN 17 861

**Titanium Welded Tube Specifications:**
Dimension	Outer Diameter	Thickness	Length
Size Range:	114mm – 20000mm	0.5mm – 50mm	Max 15m
Manufacturing Standards	ASTM B338, ASTM B862

Titanium Tubing Standard:

ASTM	USA	Ameirican Society of Mechanical Engineers
AISI	USA	Acronym of American Iron and Steel Institute
JIS	JP	Japanese Industrial Standards
DIN	GER	Deutsches Institut für Normung e.V.
UNS	USA	Unified Numbering System

Types	Out diameter	Sizes	Length
NB Sizes (in stock)	.0035” ~ 8”	1/8", 1/4", 3/8", 1/2", 5/8", 3/4", 1", 1.25", 1.5", 2", 2.5", 3", 4", 5", 6"	Cut to length
Titanium Seamless Tube (Custom Sizes)	6.35 mm OD To 101.6 mm OD	As per requirement	Cut to length
Titanium Welded Tube (ERW Tube) (in Stock + Custom Sizes)	6.35 mm OD To 152 mm OD	As per requirement	Cut to length

Titanium Welded Tubes & Seamless Tubing Surface Finish

Surface Finish		Internal Surface(ID)		Exterbal Surface(OD)
		Roughness Average(RA)		Roughness Average(RA)
		μ inch	μm	μ inch	μm
AP	Annealed & Pickled	Not defined	Not defined	40 or Not defined	1.0 or Not defined
BA	Beight Annealed	40,32,25,20	1.0,0.8,0.6,0.5	32	0.8
MP	Mechanical Polish	40,32,25,20	1.0,0.8,0.6,0.5	32	0.8
EP	Electro Polish	15,10,7,5	0.38,0.25,0.20;0.13	32	0.8

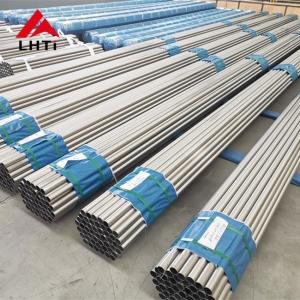

Detailed images:

The third party testing report:

ASME Welded Titanium Condenser Tubes Gr1 Titanium Heat Exchanger Tubes

Packaging and shipping:

About our company:

The exhibitions:

Our main markets: Europe, North America, Asia

ASME Welded Titanium Condenser Tubes Gr1 Titanium Heat Exchanger Tubes
